Custom Through Hole Pogo Pins for High-Reliability Systems

The landscape of electronic interconnection technology has been revolutionized by the development of through hole pogo pins, sophisticated spring-loaded connectors that deliver unmatched reliability in PCB-based applications. For over fifteen years, Promax has established itself as a premier manufacturer of high-performance pogo pins, spring-loaded connectors, and magnetic connectors, serving critical applications across consumer electronics, aerospace, and medical device industries. Operating from their facility at 480 Jackson St, Gary, IN 46402, USA, Promax delivers customizable connectivity solutions backed by internationally recognized quality certifications and competitive pricing structures that meet the evolving demands of modern electronics manufacturing.

The Revolutionary Design Philosophy Behind Through Hole Pogo Pins

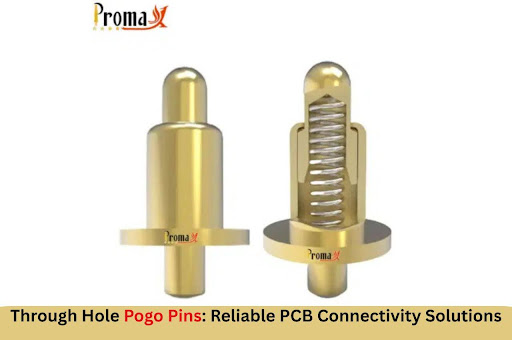

Through hole pogo pins represent a breakthrough in connector technology, engineered to traverse completely through drilled holes in printed circuit boards while maintaining exceptional spring-loaded contact mechanisms. This innovative design paradigm combines the operational flexibility of removable connections with the structural integrity of permanently mounted components, creating a hybrid solution that addresses the limitations of both traditional connector types.

The core engineering principle underlying through hole pogo pins centers on their ability to accommodate thermal expansion, mechanical tolerance variations, and repeated engagement cycles without degrading electrical performance. Unlike surface-mounted alternatives that rely solely on solder joint integrity for mechanical retention, through hole configurations distribute mechanical stresses across the entire PCB thickness, resulting in superior durability under challenging operating conditions.

The spring-loaded contact mechanism ensures consistent electrical connectivity even when subjected to vibration, shock, or thermal cycling. This self-compensating design automatically adjusts to minor dimensional variations, maintaining optimal contact pressure throughout the component's operational lifetime. The result is a connector solution that delivers both the convenience of temporary connections and the reliability required for mission-critical applications.

Advanced Material Science and Component Architecture

The exceptional performance characteristics of through hole pogo pins stem from their sophisticated three-element construction utilizing cutting-edge materials engineering. The contact plunger, serving as the primary electrical interface, is precision-manufactured from specialized alloys including lead-free brass HBi59 (with lead content below 100ppm), copper tellurium for enhanced machinability, or high-strength stainless steel variants for extreme environment applications.

Material selection for the plunger directly influences both electrical conductivity and mechanical durability. Copper tellurium alloys provide superior electrical performance while maintaining excellent dimensional stability during manufacturing processes. Lead-free brass compositions offer optimal balance between conductivity, corrosion resistance, and cost-effectiveness for high-volume applications. Stainless steel variants deliver exceptional strength and environmental resistance for aerospace and military applications.

The barrel assembly functions as both a mechanical housing and electrical conductor, manufactured using precision CNC machining techniques that achieve tolerances measured in micrometers. Materials include high-conductivity brass alloys, corrosion-resistant stainless steel grades 304/316F/L, copper-tin alloys for enhanced spring properties, and specialized high-temperature alloys for extreme environment applications. The barrel's internal geometry is engineered to provide optimal spring compression characteristics while ensuring smooth plunger operation throughout millions of compression cycles.

The internal spring element represents the most critical component, determining both mechanical performance and operational longevity. Manufactured from premium-grade stainless steel SUS304 with specialized heat treatment processes, these springs are designed to maintain consistent force characteristics across temperature ranges exceeding 150°C. Advanced spring design methodologies, including variable pitch configurations and specialized end treatments, optimize both force linearity and fatigue resistance.

Precision Manufacturing Excellence and Process Innovation

The production of high-performance through hole pogo pins requires sophisticated manufacturing capabilities that combine precision engineering with stringent quality control measures. Promax's manufacturing process begins with advanced material preparation techniques, including precision blank cutting and dimensional verification using coordinate measuring machines (CMM) capable of micrometer-level accuracy.

CNC turning operations utilize state-of-the-art multi-axis machining centers equipped with advanced tooling systems designed specifically for small-diameter precision components. These machines maintain tolerances of ±0.001mm while achieving surface finishes that minimize electrical resistance and enhance plating adhesion. Tool wear monitoring systems ensure consistent dimensional accuracy throughout production runs, while real-time quality feedback enables immediate process adjustments.

The electroplating process represents a critical value-added manufacturing step that directly impacts both electrical performance and environmental resistance. Promax employs advanced electroplating facilities capable of applying multiple precious metal coatings including gold (Au), silver (Ag), palladium (Pd), platinum (Pt), rhodium (Rh), ruthenium (Ru), and nickel (Ni). Plating thickness control systems maintain uniformity within ±10% across coating thicknesses up to 80 microinches (80U).

Gold plating processes utilize specialized chemistry and current density control to achieve optimal grain structure and porosity characteristics. The resulting coating provides exceptional corrosion resistance and low contact resistance while maintaining compatibility with lead-free soldering processes. Silver plating systems optimize conductivity for high-frequency applications, while palladium coatings offer enhanced durability for high-cycle applications.

Comprehensive Technical Specifications and Engineering Parameters

Through hole pogo pins offer extensive customization capabilities to address diverse application requirements across multiple industries. Standard diameter specifications commence at 0.7mm minimum, with full stroke capabilities of 0.2mm or greater and working stroke specifications of 0.05mm minimum. These baseline parameters can be extensively customized, with Promax's engineering capabilities extending to diameters ranging from 0.5mm for ultra-miniature applications to 3.0mm for high-current industrial applications.

Current-carrying capacity represents a critical performance parameter, with standard configurations supporting continuous currents up to 3 amperes and specialized high-current variants capable of handling up to 15 amperes. Current capacity optimization involves careful coordination of contact material selection, plating system design, spring force characteristics, and thermal management considerations. High-current applications typically require enhanced cross-sectional areas, specialized high-conductivity plating systems, and optimized spring designs that maintain consistent contact pressure under thermal expansion conditions.

Shape configurations encompass standard DIP (Dual In-line Package) formats optimized for automated insertion equipment, extended tail pin variations that provide enhanced PCB retention characteristics, and custom geometries designed for specific mechanical interface requirements. Tail pin extensions can be customized for length, diameter, and tip configuration to optimize PCB insertion forces and retention characteristics.

Environmental performance specifications include operating temperature ranges from -40°C to +125°C for standard configurations, with specialized high-temperature variants capable of operation up to 200°C. Humidity resistance testing according to MIL-STD-810 standards ensures reliable operation in tropical and marine environments, while vibration and shock resistance specifications exceed requirements for aerospace and automotive applications.

Diverse Industry Applications and Market Sectors

The versatility and reliability of through hole pogo pins have driven their adoption across numerous high-technology industries, each presenting unique performance requirements and environmental challenges. Consumer electronics applications represent the largest market segment, encompassing smartphone charging interfaces, tablet computer docking systems, wearable device connections, and laptop accessory interfaces. These applications demand compact form factors, high reliability, and cost-effective manufacturing compatible with high-volume production processes.

Telecommunications infrastructure applications utilize through hole pogo pins in base station equipment, fiber optic connection systems, and network switching hardware. These applications require components capable of maintaining consistent electrical performance across wide temperature ranges while providing immunity to electromagnetic interference. The mechanical stability provided by through hole mounting configurations ensures reliable operation in outdoor installations subjected to wind loading and thermal cycling.

Automotive electronics represent a rapidly growing application sector, with through hole pogo pins serving in electric vehicle charging systems, battery management interfaces, and advanced driver assistance systems (ADAS). Automotive applications demand components capable of withstanding extreme temperature variations, mechanical shock from road conditions, and extended operational lifetimes measured in decades. Specialized automotive-grade materials and plating systems ensure compliance with industry-specific reliability requirements.

Medical device applications require the highest levels of reliability and biocompatibility, with through hole pogo pins enabling critical connections in patient monitoring equipment, diagnostic instruments, and therapeutic devices. Medical applications often require specialized biocompatible plating systems and enhanced cleaning procedures to ensure patient safety. The consistent electrical performance characteristics of through hole pogo pins make them ideal for precision measurement applications where signal integrity is critical.

Competitive Advantages and Performance Benefits

Through hole pogo pins deliver several distinct performance advantages over alternative connection technologies, beginning with their superior mechanical retention characteristics compared to surface-mount alternatives. The through hole mounting configuration distributes mechanical stresses across the entire PCB thickness, providing exceptional resistance to pull-out forces and mechanical shock conditions. This mechanical advantage is particularly important in portable electronics and automotive applications where connection integrity must be maintained under severe mechanical stress conditions.

Manufacturing cost advantages stem from the simplified assembly processes required for through hole components compared to surface-mount alternatives. Automated insertion equipment for through hole components is generally less complex and more cost-effective than surface-mount placement systems, particularly for low-to-medium volume applications. Wave soldering processes commonly used for through hole components provide reliable, repeatable solder joint formation with minimal process control complexity.

Electrical performance advantages include lower contact resistance and enhanced current-carrying capacity compared to surface-mount alternatives of equivalent size. The through hole configuration provides larger contact areas and more robust electrical paths, resulting in lower voltage drops and reduced power dissipation. These electrical advantages are particularly important in power delivery applications and high-frequency signal transmission systems.

Serviceability represents another significant advantage, with through hole pogo pins being more accessible for field replacement and maintenance compared to surface-mount alternatives. The ability to remove and replace individual components without specialized rework equipment reduces maintenance costs and system downtime in critical applications.

Design Engineering Guidelines and Selection Methodology

Successful implementation of through hole pogo pins requires careful consideration of multiple interdependent design parameters, beginning with mechanical interface requirements. PCB hole diameter selection must account for component tolerances, thermal expansion characteristics, and assembly process variations while ensuring optimal mechanical retention. Insufficient hole clearance can result in assembly difficulties and potential component damage, while excessive clearance compromises mechanical stability and electrical performance.

Electrical specification development requires coordination of current-carrying requirements, voltage ratings, contact resistance specifications, and signal integrity considerations. High-current applications may require parallel pin configurations or specialized high-current pin designs with enhanced cross-sectional areas. Signal integrity applications require consideration of impedance characteristics, crosstalk minimization, and electromagnetic compatibility requirements.

Environmental specification development must account for operating temperature ranges, humidity exposure levels, chemical compatibility requirements, and mechanical shock/vibration conditions. Aerospace applications may require components qualified to MIL-STD specifications, while automotive applications require compliance with AEC-Q standards. Marine applications demand enhanced corrosion resistance through specialized material selection and plating systems.

Spring force optimization represents a critical design consideration that affects both electrical and mechanical performance. Insufficient spring force can result in intermittent electrical connections and poor contact resistance stability, while excessive spring force can cause excessive insertion forces and potential PCB damage. Optimal spring force selection requires coordination with mating connector specifications and assembly process capabilities.

Assembly Processes and Installation Best Practices

Proper assembly procedures are essential for achieving optimal performance and reliability from through hole pogo pin installations. The assembly process begins with accurate PCB fabrication, ensuring that hole diameters are within specified tolerances and that hole walls are properly plated for electrical continuity. Hole quality directly impacts both electrical performance and mechanical retention characteristics of the final assembly.

Automated insertion processes utilize specialized equipment designed for through hole component placement, with programmable insertion force control to prevent component damage while ensuring proper seating. Insertion force monitoring systems detect variations that may indicate hole dimension problems or component defects, enabling immediate corrective action. Component orientation verification ensures proper electrical polarity and mechanical alignment before proceeding to soldering operations.

Soldering process control is critical for maintaining spring characteristics while achieving reliable electrical connections. Wave soldering represents the preferred process for high-volume production, with careful temperature profile optimization to prevent spring tempering while ensuring complete solder wetting. Preheating systems minimize thermal shock to components while reducing solder joint voiding. Flux selection and application methods are optimized to provide adequate cleaning action without leaving residues that could affect long-term reliability.

Selective soldering processes provide enhanced control for mixed-technology assemblies containing both through hole and surface-mount components. These systems enable precise temperature and time control for individual connections while minimizing thermal exposure to adjacent components. Nitrogen atmosphere capabilities reduce oxidation and improve solder joint quality, particularly important for precious metal plated contacts.

Quality Assurance Systems and Compliance Standards

Through hole pogo pins manufactured by Promax comply with comprehensive international quality standards that ensure consistent performance and reliability across all product lines. ISO 9001:2015 certification for quality management systems provides the foundation for systematic quality control processes that encompass design, manufacturing, and customer service activities. This certification ensures that quality management principles are integrated throughout all business processes.

ISO 14001:2015 environmental management system certification demonstrates commitment to sustainable manufacturing practices and environmental responsibility. This standard ensures that manufacturing processes minimize environmental impact while maintaining product quality and performance characteristics. Waste reduction programs and energy efficiency initiatives are integrated into daily operations to support environmental objectives.

ISO 45001:2018 occupational health and safety management system certification ensures that workplace safety is prioritized throughout all manufacturing operations. This standard provides systematic approaches to hazard identification, risk assessment, and safety control measures that protect employee health while maintaining production efficiency.

RoHS (Restriction of Hazardous Substances) compliance ensures that all through hole pogo pins are manufactured without prohibited hazardous materials, enabling global market access and environmental responsibility. QC 080000:2017 certification for hazardous substance process management provides additional assurance that manufacturing processes effectively control and eliminate prohibited substances throughout the production cycle.

Statistical process control systems monitor critical manufacturing parameters in real-time, enabling immediate corrective action when process variations are detected. Control charts track dimensional accuracy, plating thickness, spring force characteristics, and electrical performance parameters to ensure consistent product quality. Automated data collection systems provide comprehensive traceability and statistical analysis capabilities that support continuous improvement initiatives.

Emerging Technologies and Future Development Trends

The continuous evolution of through hole pogo pin technology is driven by emerging application requirements and advances in materials science, manufacturing processes, and design methodologies. Miniaturization trends in electronics are pushing the development of smaller diameter pins with enhanced performance characteristics, requiring advances in precision manufacturing and materials engineering. Ultra-miniature pin designs with diameters below 0.5mm demand specialized manufacturing techniques and advanced quality control systems.

High-frequency and high-speed digital applications are driving innovations in pin geometry and materials to minimize signal degradation and electromagnetic interference. Controlled impedance designs with optimized conductor geometries enable through hole pogo pins to support gigahertz-frequency signals with minimal insertion loss. Advanced plating systems and specialized materials reduce skin effect losses while maintaining compatibility with standard assembly processes.

Smart connector technologies incorporating embedded sensors and communication capabilities represent an emerging trend that could transform traditional connectivity paradigms. Sensor-enabled pogo pins could provide real-time monitoring of connection integrity, current flow, and environmental conditions, enabling predictive maintenance and system optimization. These advanced technologies require integration of micro-electronic components within the connector structure while maintaining traditional mechanical and electrical performance characteristics.

Environmental sustainability initiatives continue to influence material selection and manufacturing processes, with emphasis on recyclable materials, reduced environmental impact, and lifecycle optimization. Advanced recycling technologies for precious metal recovery and reuse support circular economy principles while reducing material costs. Biodegradable packaging materials and reduced-impact manufacturing processes align with global sustainability objectives.

Strategic Implementation and Partnership Considerations

Successful implementation of through hole pogo pin solutions requires strategic partnerships with experienced manufacturers who understand the complexities of modern electronic systems and maintain capabilities for custom engineering support. Promax's engineering team, led by Manager Gavin, provides comprehensive design support services that encompass application analysis, custom product development, and manufacturing optimization to ensure optimal performance in specific applications.

The selection of manufacturing partners should prioritize companies with demonstrated expertise in precision manufacturing, advanced quality systems, and comprehensive testing capabilities. Manufacturing capacity and scalability are critical considerations for projects requiring high-volume production, while engineering support capabilities are essential for custom applications requiring specialized design solutions.

Supply chain management considerations include geographic distribution of manufacturing facilities, inventory management capabilities, and logistics support for global markets. Promax's strategic location in Gary, Indiana, provides efficient access to North American markets while maintaining competitive manufacturing costs and short lead times for both prototype and production quantities.

Technical support services including application engineering, design optimization, and failure analysis capabilities provide additional value beyond basic component supply. These services enable successful implementation of complex applications while minimizing development time and reducing project risks. Ongoing technical support throughout the product lifecycle ensures continued optimal performance and facilitates future product upgrades or modifications.

Conclusion: The Future of Reliable Electronic Connections

Through hole pogo pins represent a mature yet continuously advancing technology that provides essential connectivity solutions for the most demanding electronic applications. Their unique combination of mechanical reliability, electrical performance, and manufacturing efficiency makes them indispensable components in modern electronic systems across diverse industries and applications.

The continued evolution of through hole pogo pin technology, driven by advances in materials science, manufacturing precision, and design optimization, ensures their continued relevance in emerging applications including electric vehicles, renewable energy systems, and next-generation telecommunications infrastructure. As electronic systems become increasingly complex and demanding, the fundamental advantages of through hole pogo pins—mechanical reliability, electrical performance, and manufacturing efficiency—become even more valuable.

Organizations seeking to implement high-performance through hole pogo pin solutions should prioritize partnerships with experienced manufacturers who demonstrate both technical expertise and manufacturing excellence. The combination of advanced engineering capabilities, comprehensive quality systems, and responsive customer support ensures successful implementation and long-term reliability in even the most challenging applications.

For expert consultation on through hole pogo pin applications and customized engineering solutions, contact Promax at tonyhoo@promaxpogopin.com or (765) 705-7361. Their experienced engineering team provides comprehensive support from initial concept development through high-volume production, ensuring optimal performance and reliability for your specific application requirements.
